Ip67 19mm Stainless Steel Push Button Switch Led Illuminated For Car

Name: Ip67 19mm Stainless Steel Push Button Switch Led Illuminated For Car
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : LD19-1OE/S

Certification : ROHS CE

Place of Origin : CHINA ZHEJIANG

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : Blister Package+ Foam+Color box Or Upon your request

application : general purpose

head shape : flat head

mounting hole size : 19mm

material : stainless steel

led color : Red,Green,Yellow,Orange,Blue,White,Purple

voltage : 250VAC

Contact Now

Ip67 19mm Stainless Steel Push Button Switch Led Illuminated Flat Head For Car

Product Feature:

——The push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.

——momrntary switch-Press the power on, release the hand power on of off, the button spring to original position.

——led color: blue green yellow red white

led voltage: 3V 6V 12V 24V 38V 110V 220V

Product Details

switch type	push button switch
diamter	19mm
head shape	flat head
Max.Current	20A
Max.Voltage	250VAC DC
contact resistance	≤50Ω
insluation resistance	≥10000MΩ
operating type	momentary latching

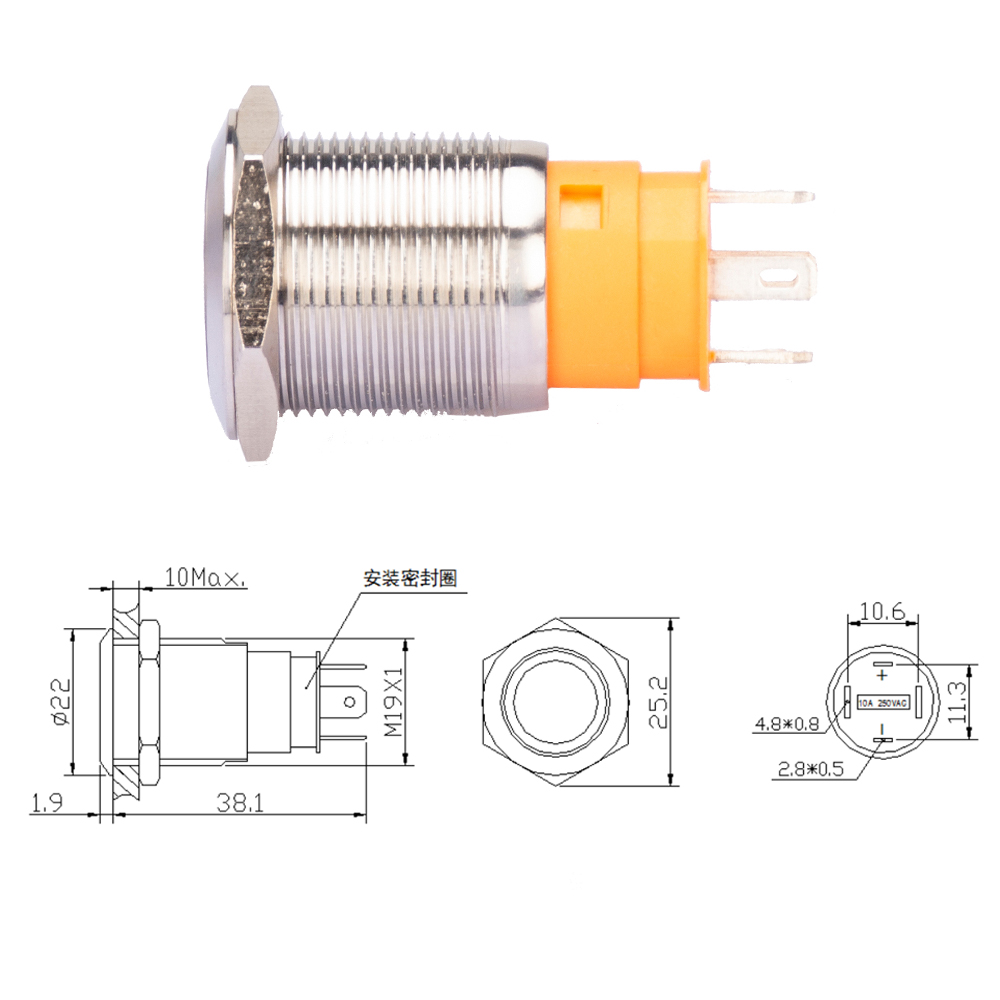

Product size reference:

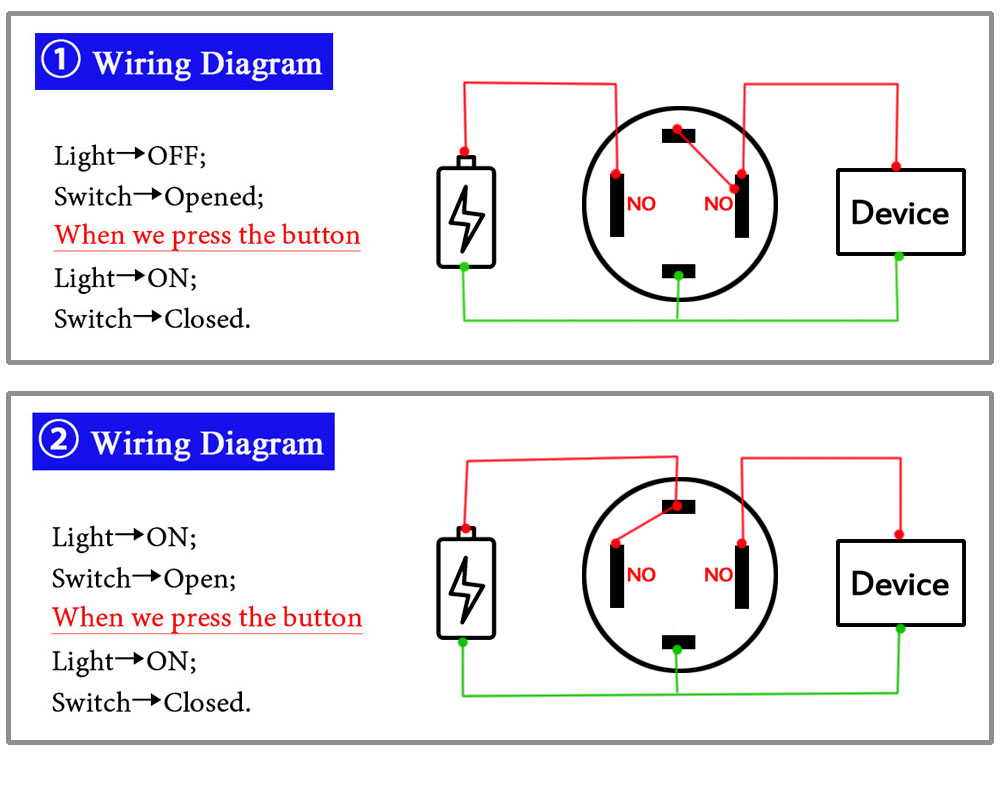

Wire connection reference:

Ip67 19mm Stainless Steel Push Button Switch Led Illuminated For Car

F&Q:

Q: What is Latching function?

A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.

Q: Can you provide samples ? Are the samples free ?

A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples

Q:What can you get from us?

A:Excellent products (unique design, strict quality control ).Great service(OEM,ODM, after-sales services, fast delivery).Professional business consultation.

Transport:

Ip67 19mm Stainless Steel Push Button Switch Led Illuminated For Car
